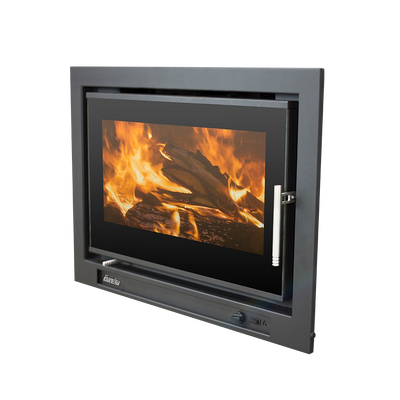

Ruby - Insert wood heater

Eureka Ruby Insert Wood Heater – Sleek Modern Design & Efficient Heating

The Ruby Insert Wood Heater offers a contemporary aesthetic and can be installed as a masonry insert (fascia 16mm) or a zero clearance flush-fit insert (fascia 3mm).

Key Features

• 3-speed fan with thermostatic control

• Cast iron lined for durability

• 8 mm steel baffle plate

• Dual pre-heated primary air

• Dual action handle latch (black handle option)

• 10-year firebox warranty

Specifications

• Masonry Insert (H x W): 705 x 935 mm | Fascia 16 mm | Shipping Weight: 179 kg

• Zero Clearance Insert (H x W): 736 x 930 mm | Fascia 3 mm | Shipping Weight: 285 kg

• Firebox Dimensions (H x W x D): 408 x 580 x 431 mm

• Door Opening: 275 x 580 mm

• Glass Viewing: 310 x 630 mm

• Flue Size: 150 mm

• Peak Output: 15 kW

• Efficiency: 68%*

• Emissions: 1.4 g/kg

Hearth & Clearances

• Minimum hearth width: 1000 mm, depth: 520 mm, thickness: 18 mm

• Clearance to mantel shelf: 1500 mm*

*Peak efficiency % quoted.

For further detailed information on the product, visit the brand’s Australian website or speak to one of our team members in-store.
