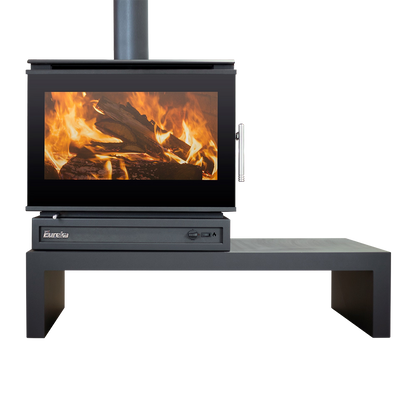

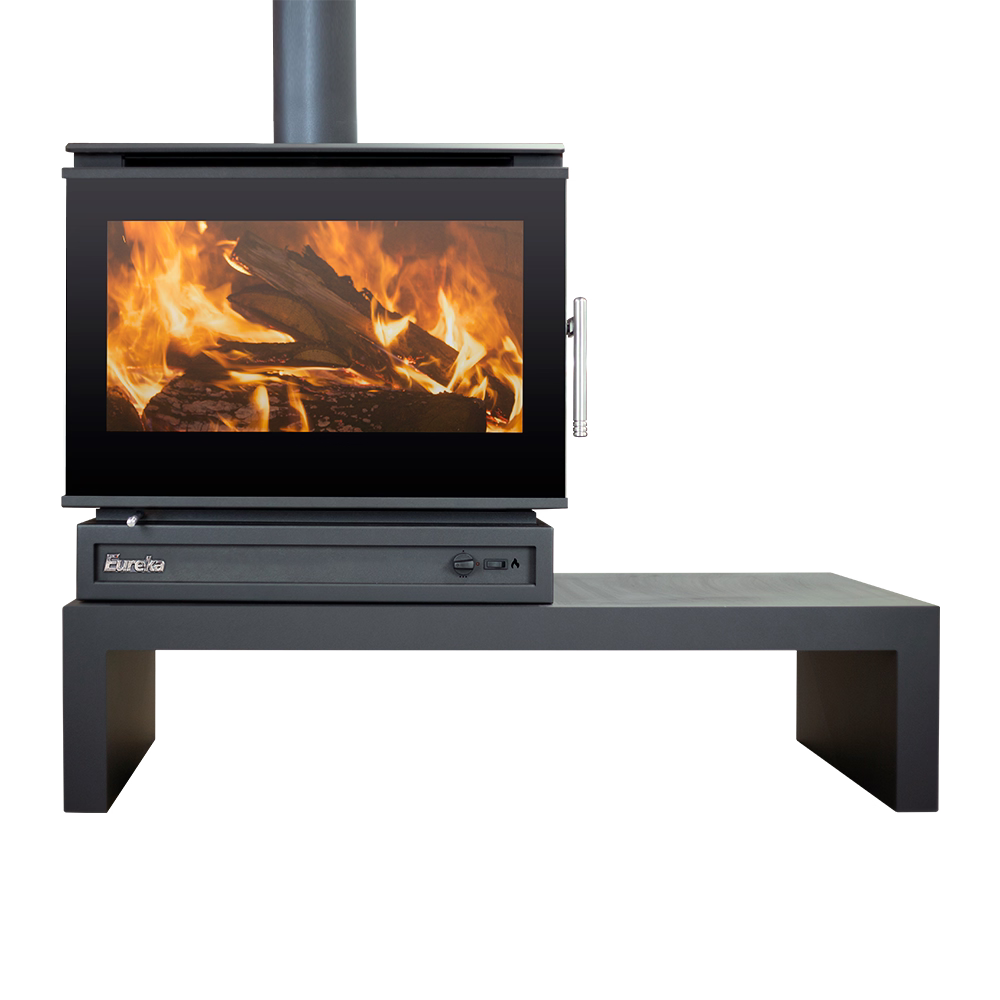

Eureka Ruby Mk2 Modular – Sleek, Modern Wood Heating

Ruby wood heaters combine sleek design with high efficiency, low emissions, and optional 1200mm benches for modular setups. Available in freestanding models with dual preheated primary air.

Standard Features

• Sleek, Modern Design

• 3-Speed Fan

• Cast Iron Lined

• 8mm Steel Baffle Plate

• 10 Year Firebox Warranty

• Dual Preheated Primary Air

• Dual Action Latch & Thermostatic Fan Control

• Black Handle Option

• Optional Bench for Modular Models

Specifications

• Overall Dimensions: H 676 mm × W 748 mm × D 548 mm

• Firebox: H 408 mm × W 580 mm × D 431 mm

• Door Opening: H 275 mm × W 580 mm | Glass Viewing: H 310 mm × W 630 mm

• Flue Size: 150 mm | Back to Flue Centre: 205 mm

• Shipping Weight: 212 kg

• Baffle: 8 mm | Glass: Flat, toughened 5 mm ceramic

Bench Dimensions (Optional): H 280 mm × W 1200 mm × D 550 mm | Leg Span 1080 mm

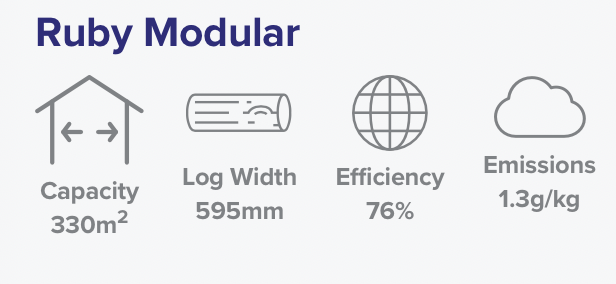

Emissions & Efficiency

• Emissions: 1.3 g/kg | Efficiency: 76% | Peak Output: 17 kW

Hearth & Clearance

• Heater Only: Min Width 1000 mm, Depth 898 mm, Front 330 mm, Rear 50 mm, Side 325 mm, Corner 50 mm*

• With Bench: Min Width 1000 mm, Depth 900 mm, Front 300 mm, Rear 50 mm, Side 325 mm, Corner 50 mm*


For further detailed information on the product, visit the brand’s Australian website or speak to one of our team members in-store.
